Aluminum Profile Extrusion Press Machine
Aluminum profile extrusion machine features:
1,energy saving design
2, VFD or servo control are optional
3,long stroke and short stroke are optional
Aluminum Extrusion press machine is used for making aluminum profile from raw material, our design features of aluminum extrusion machine:
1,long stroke or short stroke are optional
2,VFD design or servo design are optional
3,heat exchanger with cooling tower design or chiller design are optional

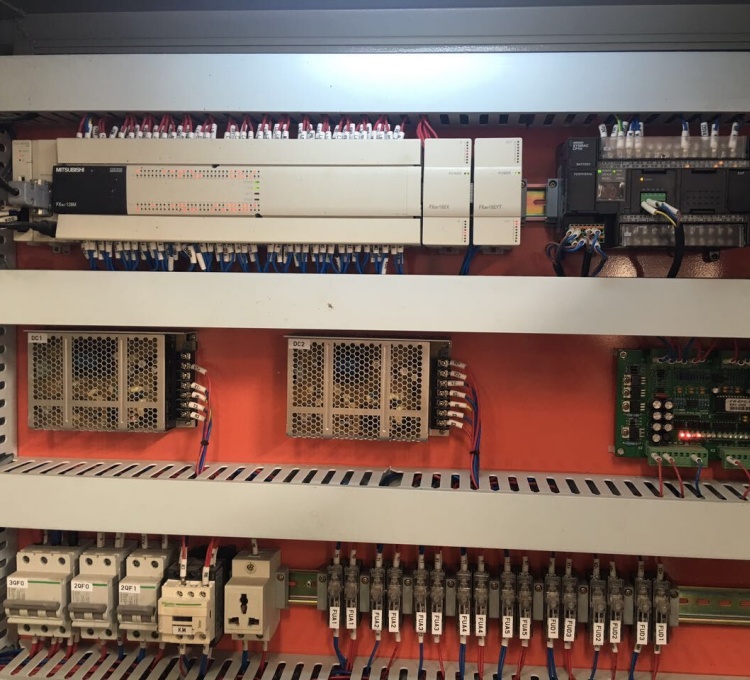

4,Siemens PLC or Mitsubishi PLC are optional
5,billet length container are optional
6,mould assembly size are optional
7,extrusion outlet size are optional
8,dummy block or active block are optional
Aluminum profile extrusion press machine regular design parameters:
| Model | billet size (mm) | front platen outlet size (mm) | weight (kgs) | dimension of extrusion press (mm) L*W*H |
| 580UST | ф76*350 | ф110*130 | 19000 | 5395*2170*2720 |
| 750UST | ф100*510 | ф140*170 | 28000 | 6700*3100*3400 |
| 930UST | ф120*540 | ф150*180 | 41000 | 9700*3200*3700 |
| 1150UST | ф127*700 | ф160*210 | 56000 | 12600*3800*3800 |
| 1600UST | ф152*800 | ф180*220 | 95000 | 13000*4300*4200 |
| 2000UST | ф178*1100 | ф240*270 | 123000 | 13500*5000*5200 |
| 2750UST | ф228*1200 | ф280*330 | 165000 | 13800*5600*5200 |
| 3300UST | ф254*1200 | ф330*450 | 235000 | 18700*6100*5900 |
| 4000UST | ф310*1300 | ф400*520 | 315000 | 20000*6500*7000 |
Our aluminum profile extrusion machine advantage:
1,long time use,main machine 15years warrany
2,stable working, low maintenance
3,45years history, long experience
4,fast after sales service
What is the wearing parts for aluminum extrusion machine?
1,extrusion stem
2,dummy block
3,heating wire
4,shear blade
5,container
6,sealing parts
